BTE Range

Big on quality, small on cost
Fast Delivery
Bespoke Design

Key Features:

Our BTE range is an adjustable height Ball Transfer Unit – available with a variety of stem lengths and thread sizes for maximum usability and fit options. They are fitted with a felt seal for longer, cleaner running.

  • Thread fixing for adjusted height.
  • Drilled fixing hole.
  • Various thread lengths are available.
  • BTE is fitted with a felt seal.

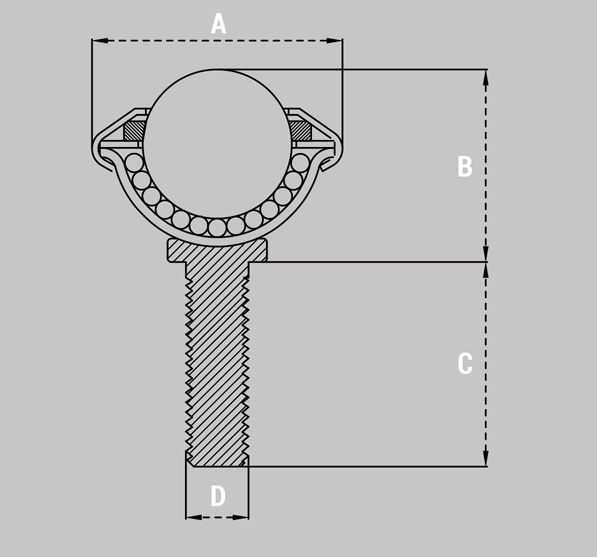

Reference Material & Finish Ball Dia. mm A mm B mm C mm D mm Maximum Load Kg.
BTE 19 Chrome Steel Balls, Bright Zinc Plated Pressings 19 32.1 24.6 25, 30, 35, 40, 50 M8 25
BTE 25 25.4 39.7 32.5 25, 30, 35, 40, 50 M8 55
BTE 19 NB Nylon Load Ball, Bright Zinc Plated Pressings 19 32.1 24.6 25, 30, 35, 40, 50 M8 20
BTE 25 NB 25.4 39.7 32.5 25, 30, 35, 40, 50 M8 25
BTE 19 SB Stainless Steel Balls, Bright Zinc Plated Pressings 19 32.1 24.6 25, 30, 35, 40, 50 M8 25
BTE 25 SB 25.4 39.7 32.5 25, 30, 35, 40, 50 M8 55

Example Part No. BTE19-40NB (19mm unit supplied with Nylon Load Ball and 40mm long thread).
