BTD Range

Big on quality, small on cost
Fast Delivery
Bespoke Design

Key Features

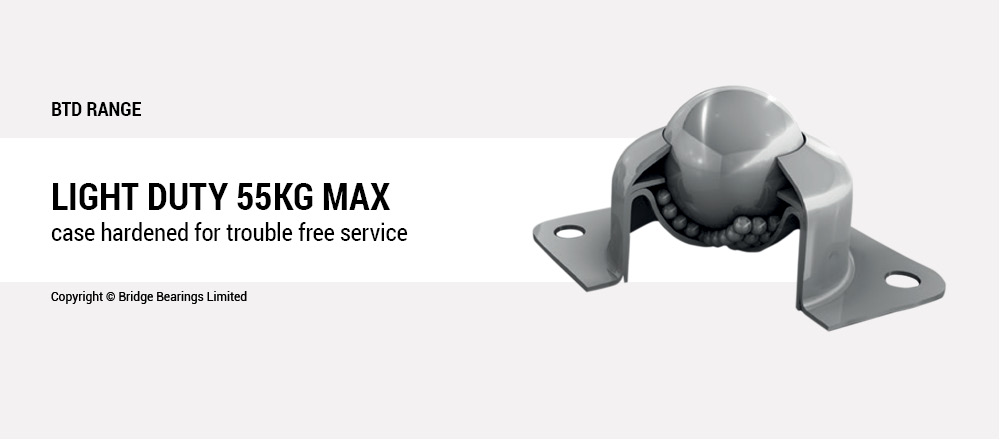

  • Light duty pressed steel ball transfer unit manufactured with standard zinc plated finish.
  • Ball contact surface is case hardened to ensure a long trouble-free service.
  • Unit complete with 2 hole fixing.
  • Dirt exit hole included as standard.
  • BTD is fitted with a felt seal.

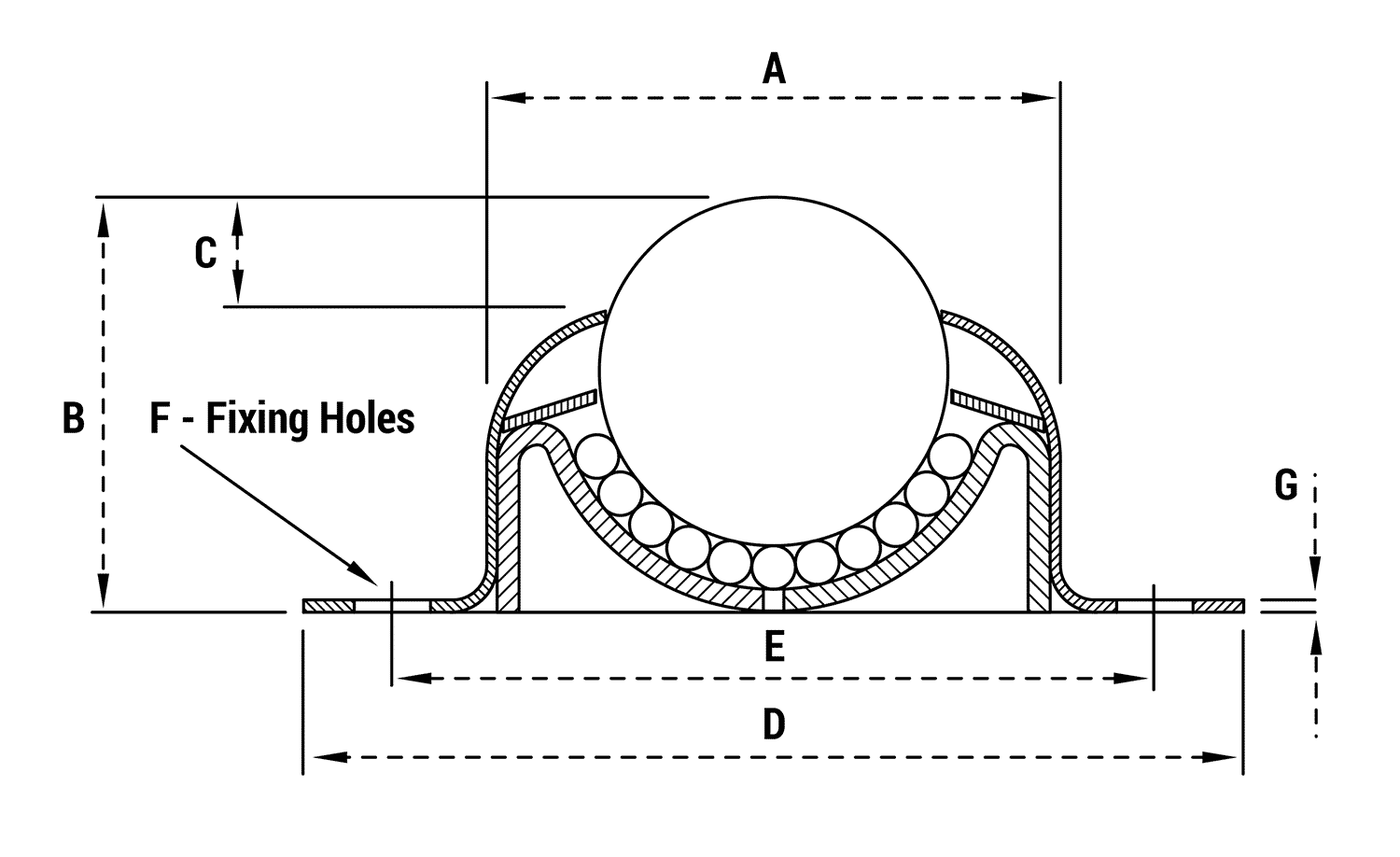

Reference Material & Finish Ball Dia. mm A mm B mm C mm D mm E mm F (Dia.) mm G mm Maximum Load Kg.
BTD 25 Chrome Steel Balls, Bright Zinc Plated Pressings 25.4 41.8 30.25 8.00 68.50 55.56 5.5 0.90 55
BTD 25 SB Stainless Steel Balls, Bright Zinc Plated Pressings 25.4 41.8 30.25 8.00 68.50 55.56 5.5 0.90 55
