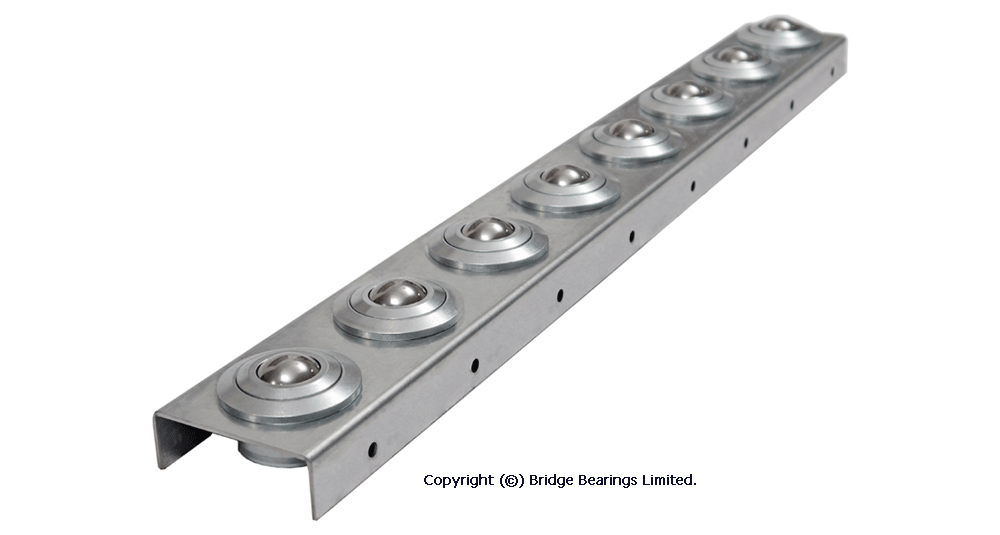

Bridge Bearings Ball Channels
Can be used individually or bolted together for simple, no nonsense ball table construction. Suitable for ‘light’ or ‘heavy’ duty applications. Ball Channels supplied fitted with BTA, BTB or BTC units. Supplied ‘galvanized’ or ‘painted’ in standard 1,200mm lengths and 75mm ball pitch.
| Item Code |
Ball Dia mm |

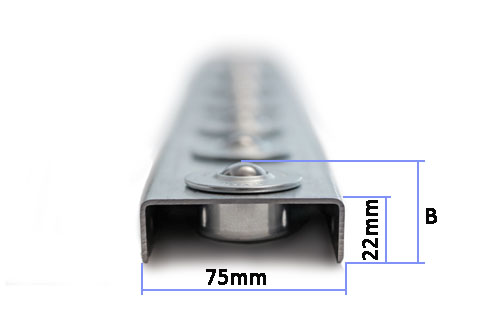

Maximum Load Kg’s Per Ball | Ball Unit Materials | Dimension B |
||
|---|---|---|---|---|---|---|
| STD | SB | SS | ||||
| BC-BTA22 | 22.2 | 160 | Y | Y | n/a | 31.8mm |
| BC-BTB25* | 25.4 | 55 | Y | Y | Y | 36.2mm |
| BC-BTB32* | 31.75 | 125 | Y | Y | Y | 38.3mm |
| BC-BTC30SP | 30 | 250 | Y | Y | n/a | 36.1mm |
| BC-BTC30 | 30 | 350 | Y | Y | n/a | 36.1mm |
STD: Chrome Steel Balls, Bright Zinc Plated Pressings.
SB: Stainless Steel Balls, Bright Zinc Plated Pressings.
SS: Stainless Steel Balls and Pressings.
* Channels fitted with BTB style ball units have the option to be 2 or 3 HOLE fixing.
