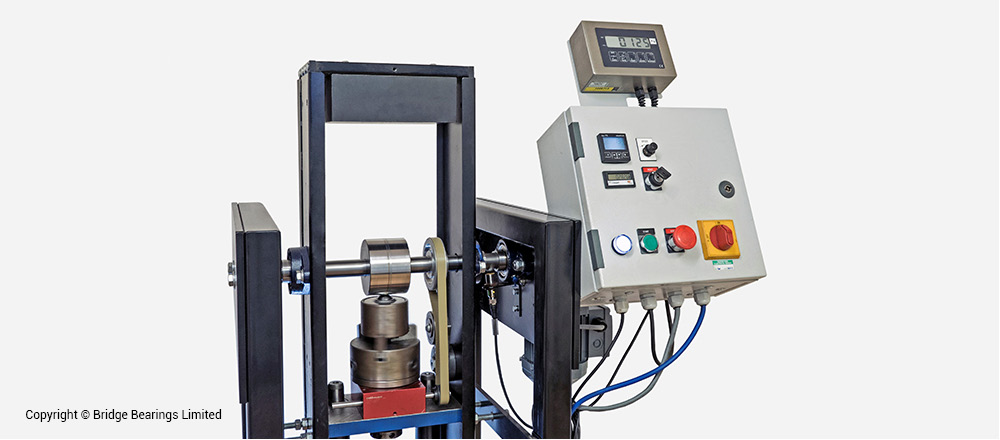

Our purposely designed Ball Unit Test Rig ensures product quality is maintained. Each unit is load tested for a million cycles. This rigorous testing, together with nearly 60 years of research, development and experience guarantees a quality of the highest standards. BS EN ISO 9001:2015 registered.
Each unit is pre-lubricated during the manufacturing process. If units do become dry, we suggest using WD40 or a light engine oil to prolong the life of the ball unit. Please note, our stainless steel units are supplied ‘dry’.
| Prefix | Load Ball | Minor Balls | Housing |
|---|---|---|---|
| Standard Units | Chrome Steel Grade 100 60-64HRC | Chrome Steel Grade 100 60-64HRC | Carbon Steel Bright Zinc Plated |
| NB | Plastic Delrin/Nylon | Stainless Steel AISI 420 | Carbon Steel Bright Zinc Plated |
| SB | Stainless Steel AISI 420 | Stainless Steel AISI 420 | Carbon Steel Bright Zinc Plated |
| SP | Stainless Steel AISI 420 | Stainless Steel AISI 420 | Nylon 6 30% Glass Filled |
| SS | Stainless Steel AISI 420 | Stainless Steel AISI 420 | Stainless Steel AISI 304 |
